INTRODUCTION
For permanent hair removal, there are 2 classical technologies: IPL and 808nm diode laser.
Diode laser hair removal is a perfect complementary for IPL on dark skin and large area hair removal treatment.
Meanwhile IPL can do multifunctional treatment on vascular, skin aging, freckles and acne. 808nm diode laser system is widely practiced and ideal hair removal system in clinical use.
Selective photothermolysis (SPTL), the matching of a specific wavelength of light and pulse duration to obtain optimal effect on a targeted tissue with minimal effect on surrounding tissue.
Lasers can cause localized damage by selectively heating dark target matter, melanin, in the area that causes hair growth, the follicle, while not heating the rest of the skin.
The energy absorption of hair follicle melanin is strongest at 808nm wavelength, which can damage the hair follicles effectively, meanwhile no adverse reaction to skin surface.
IPL which is short for Intense Pulsed Light uses filtered broadband light technology to selectively heat specific targets (chromophores) in the skin.
Depending on the wavelength selected, the target chromophores can be melanin or haemoglobin.
In this way, pigmentation, spider veins and hair follicles can be preferentially destroyed without harming the surrounding normal skin.
FUNCTIONS
General rejuvenation (Photorejuvenation)
Pigmentation (sun spots, age spots, freckles, uneven skin tone)
Acne Removal Spider veins (Telangiectasia)
Hair Removal
FEATURES

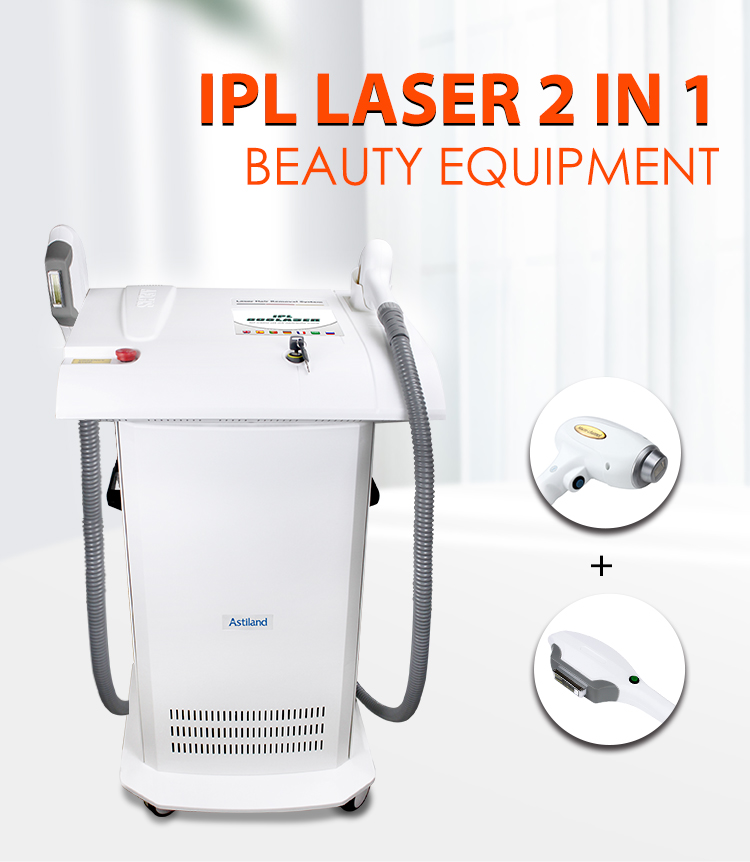

1. Multifunctional: 2 laser technology combine in 1 system

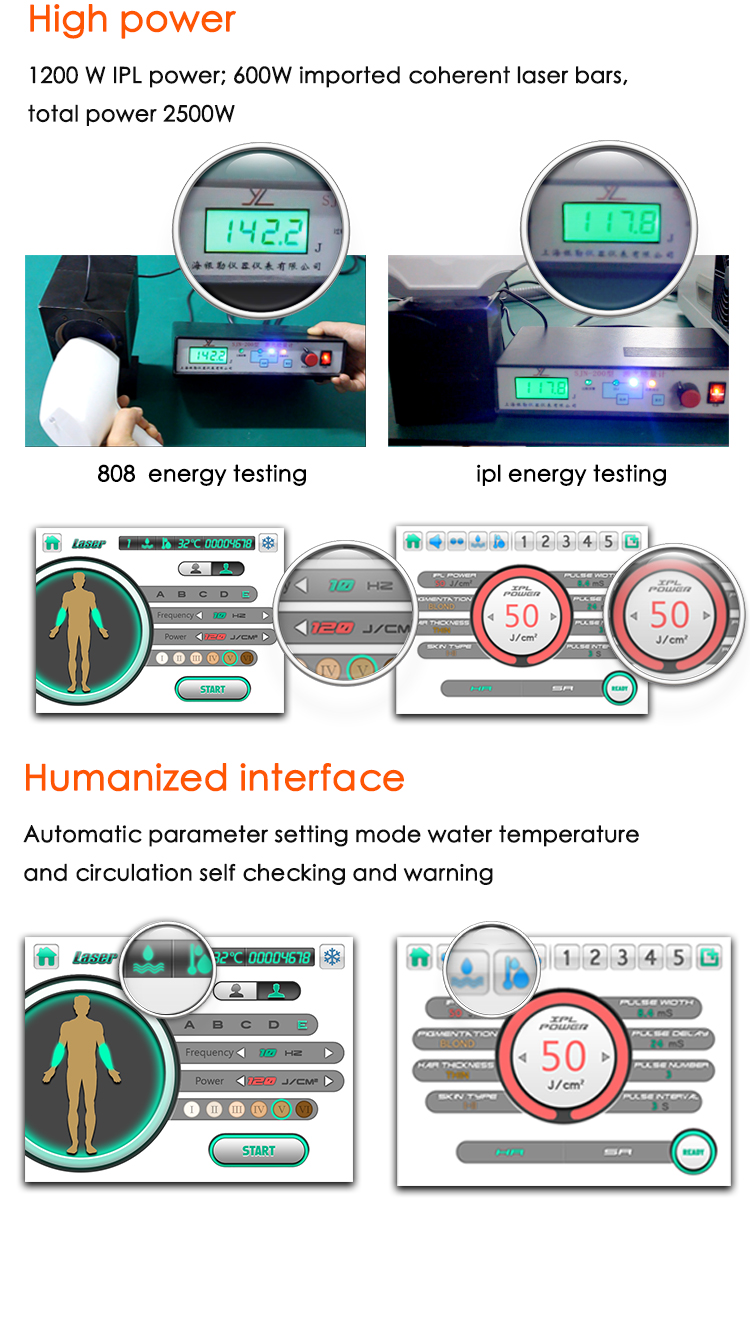

2. High power: 1200 W IPL power; 600W imported coherent laser bars, total power 2500W

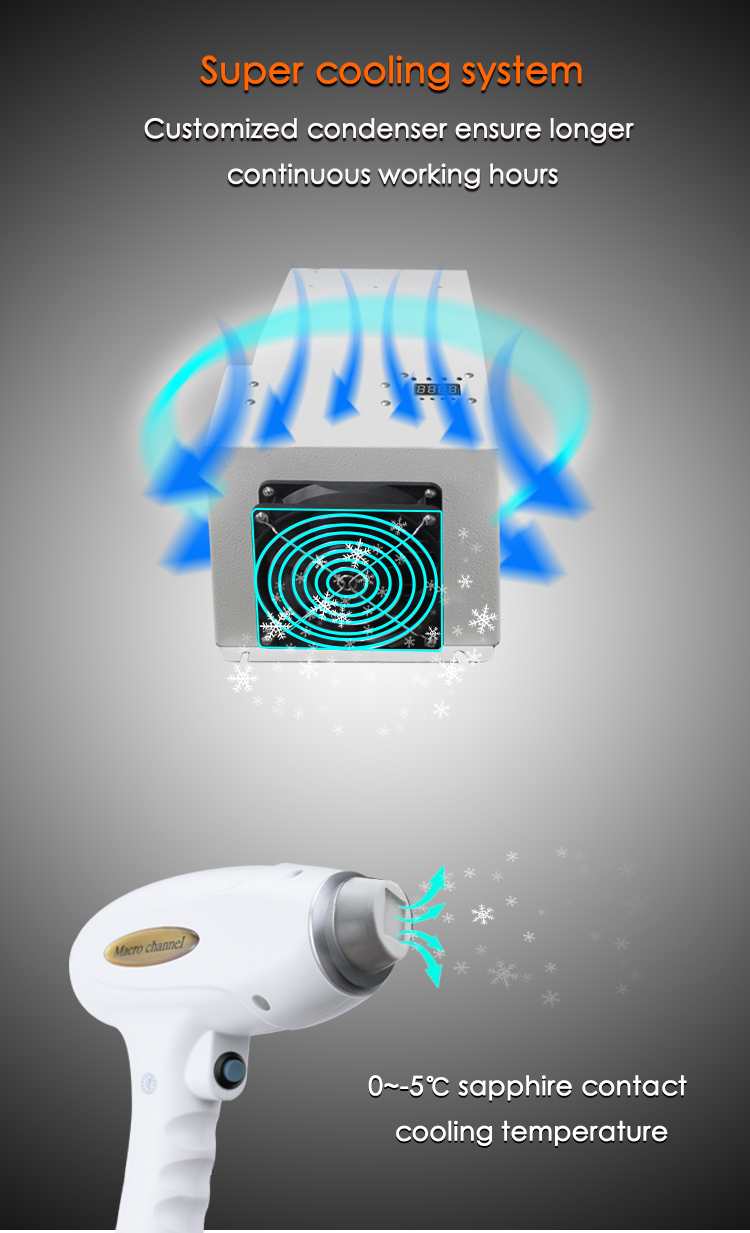

3. Super cooling system: condenser adopted cooling system ensure longer continuous working hours perfectly match massive treatment needs.
4. Comfortable: 0~-5℃ sapphire contact cooling temperature

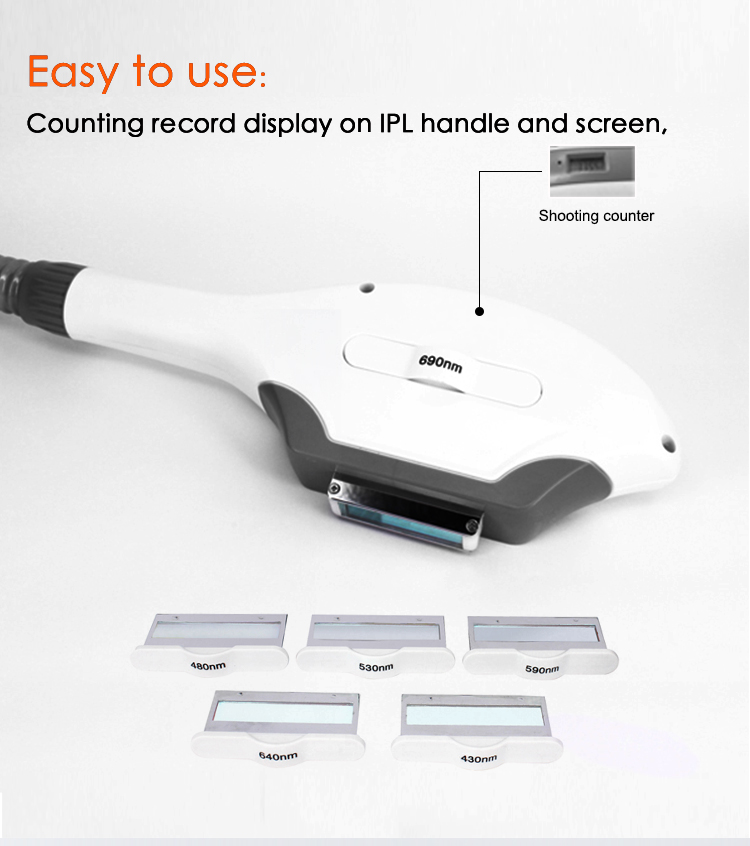

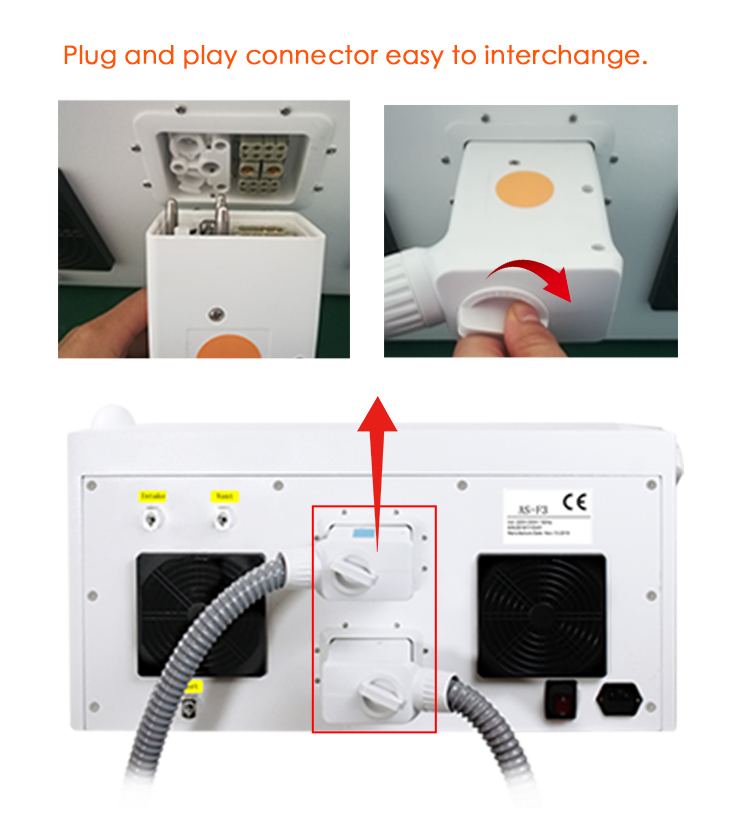

5. Easy to use: counting record display on IPL handle and screen, plug and play connector easy to interchange.
6. Humanized control: 7 languages option; automatic mode setting by skin color, hair color, hair density; water flow&water temperature auto checking and warning, get rid of checking water level

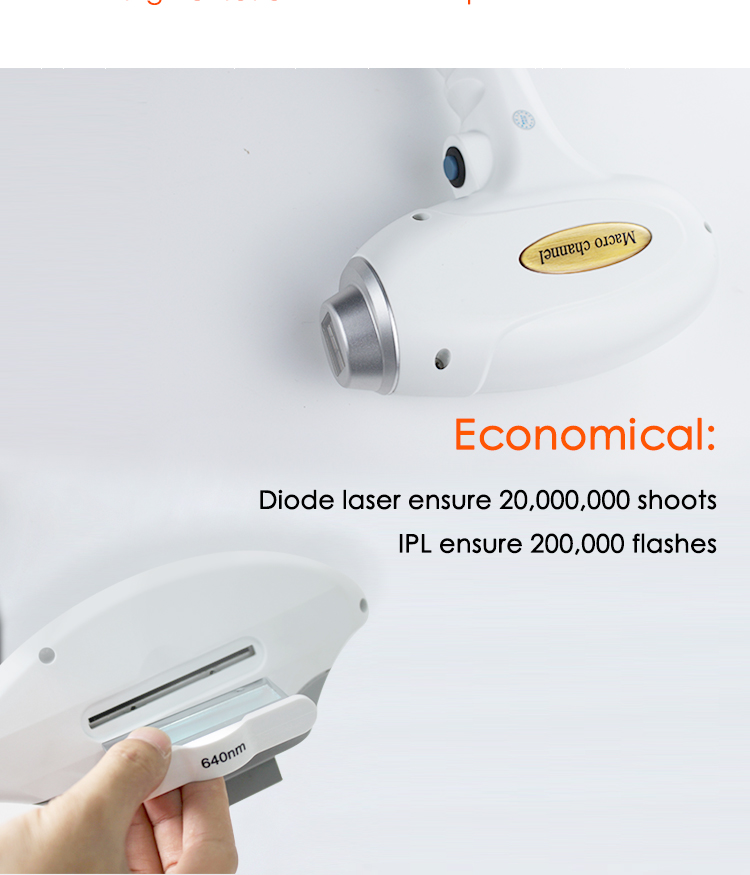

7. Economical: IPL ensure 200,000 flashes. Diode laser ensure 20,000,000 shoots.
| Laser type | IPL | 808nm Diode laser |
| Wavelength | 430/480/530/590/640-1200nm
| 808nm |

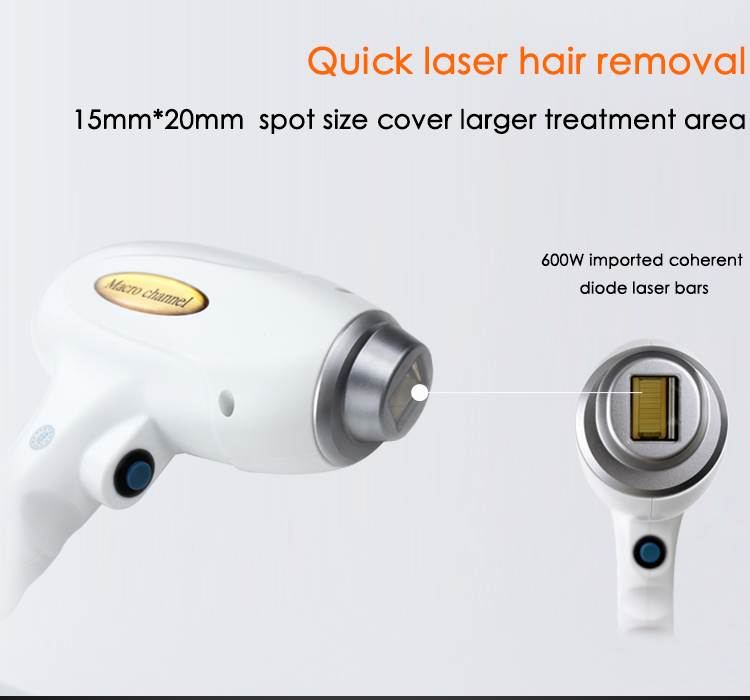

| Spot size | 15*50mm, 8*40mm(optional) | 15mm*20mm |
| Fluence | 1-50J | 1-120J/cm² |
| Laser power | 1200W | 600W |
| Frequency | | 1~10hz |
| Pulse width | 1.0-20.0ms |
| Pulse number | 1-5 |
| Pulse delay | 1-50ms |
| Shot period | 1-4s |
| Lamp longevity | 200,000 shoots |
| Machine power | 2500W |
| Case material | ABS |
| Display | 8’ color touch screen |
| Cooling system | automatic water detector cooling+air cooling |
| Power input | AC220V/110V±10%, 50-60HZ |
ACCESSORY list 1 x Main Machine 1 x IPL probe 1 x Diode laser probe 5 x IPL filters 1 x Doctor glasses 1 x Goggles 1 x Power Cord 1 x Funnel with connector 1 x Drainage connector 2 x Keys 1 x User Manual 2 x Fuse
